All modern microfluidics research is based on the generation of small channels in polymer matrices. Polydimethylsiloxan (PDMS, “Silicone”) is still the most widely used material for this purpose. Conventionally, channels inside PDMS are created by soft lithography: PDMS is poured over a master (mould) which is a negative of the chip design. PDMS is peeled off and consecutively sealed with a lid by bonding. This process requires several steps, including at least three steps for the generation of the master structure by photolithography and the parameters of the bonding process are not easily controllable. Furthermore, circular channel cross sections, which are especially interesting for mimicking in vivo environments (veins, arteries) cannot be produced by this method. Therefore we developed SLSL (Suspended Liquid Subtractive Lithography), where an immiscible liquid (surfactant pluronics PE3100) is introduced into the uncured PDMS matrix by a thin needle mounted on a 3D printer printing head.

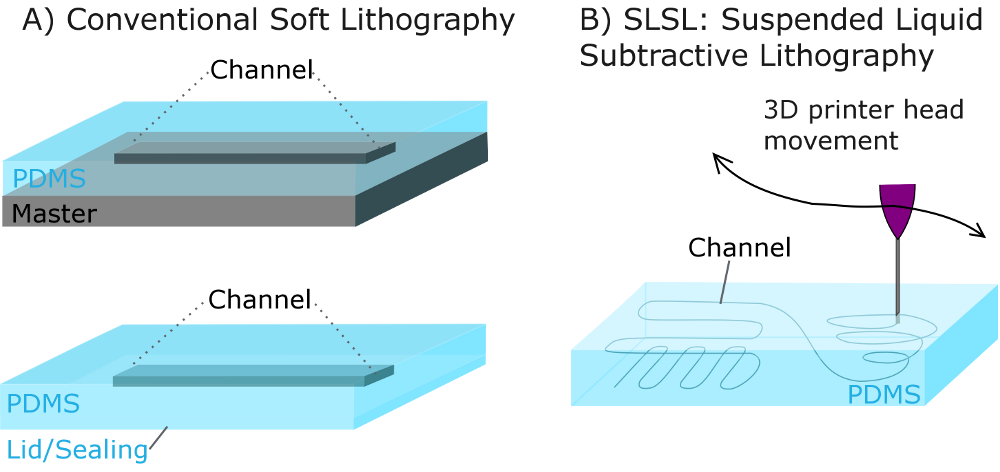

Illustration of channel creation through conventional soft lithography and SLSL. In soft lithography the polymer (PDMS) is structured by pouring on a negative master mould and consecuitve sealing of the strucutre. In Suspended Liquid Subtractive Lithography channels are created through immersion of an immiscible, density-matched liquid (surfactant) through a capillary on a 3D printer.

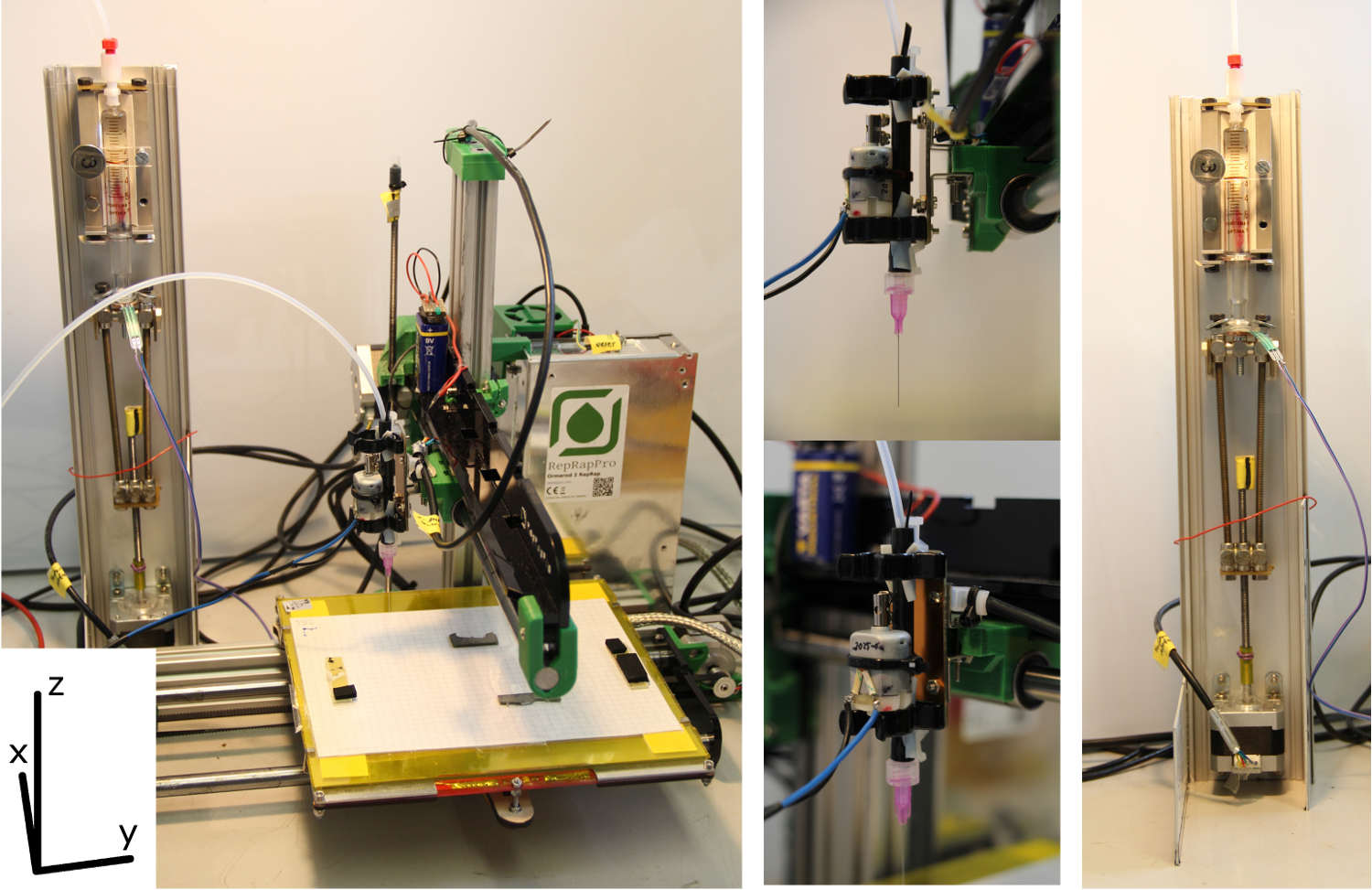

Exemplary set-up of the 3D printer used for SLSL. A RepRap Ormerod 2 was equipped with a capillary connected to a syringe pump.



With SLSL, the dynamic change of channel diameter is possible by adjusting the amount of extruded liquid during printing. The production of membrane valves was also demonstrated.

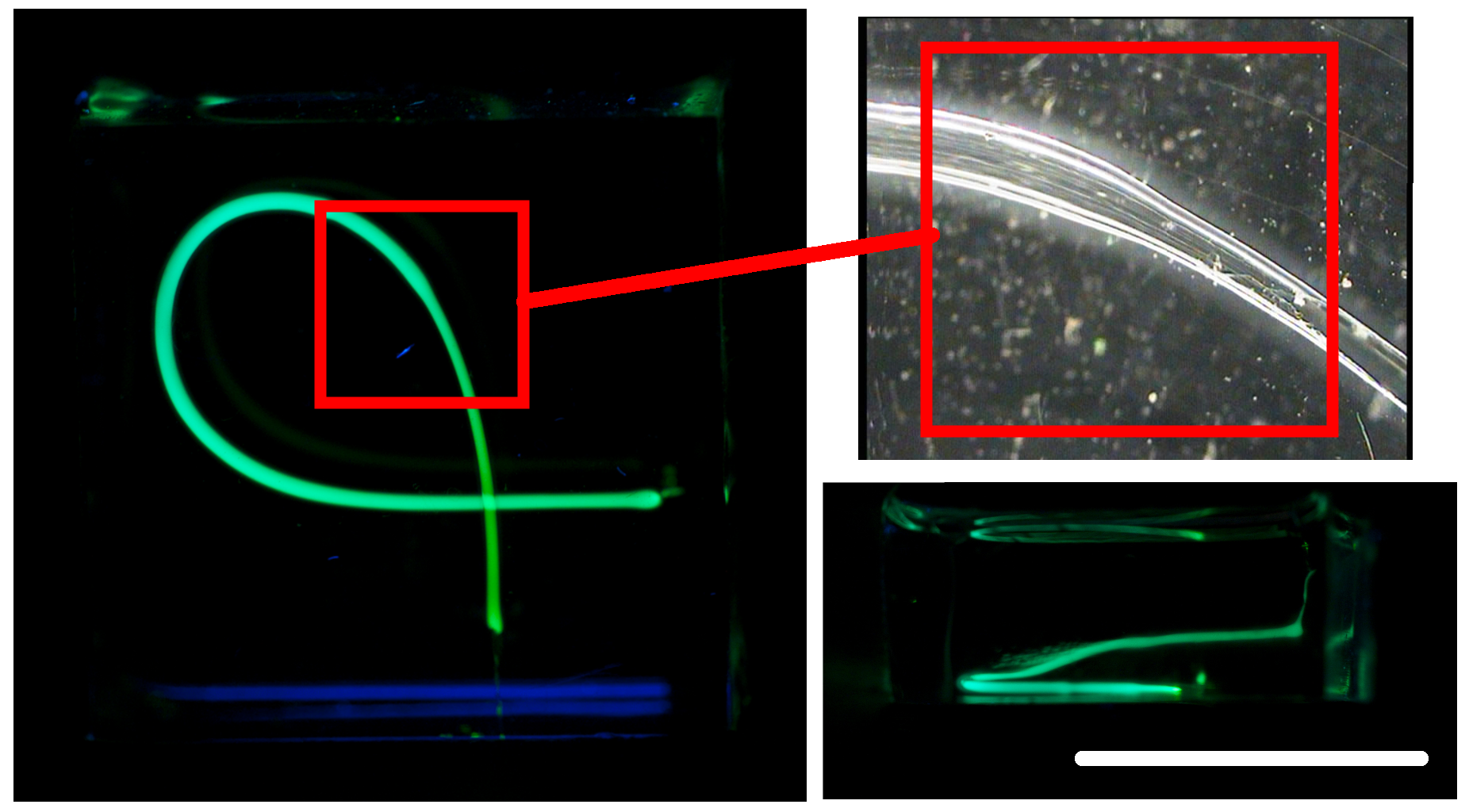

SLSL channel example

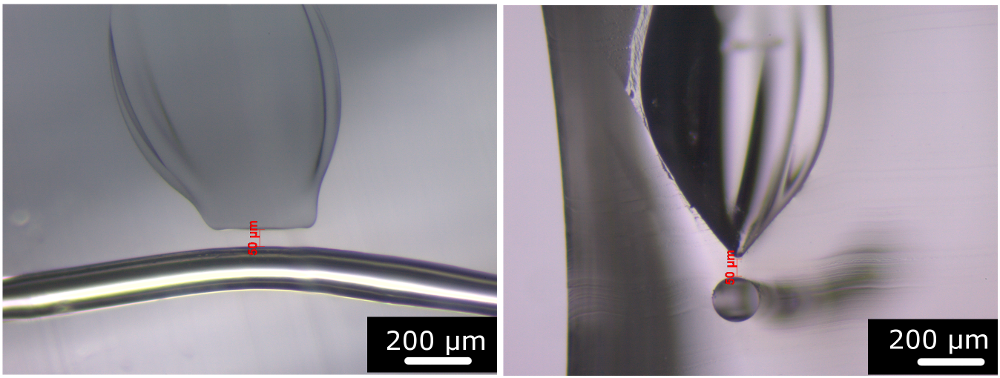

Channel thicknesses can be dynamically changed during printing. Classical membrane valves with a membrane of 200 µm between channel and valve reservoir.

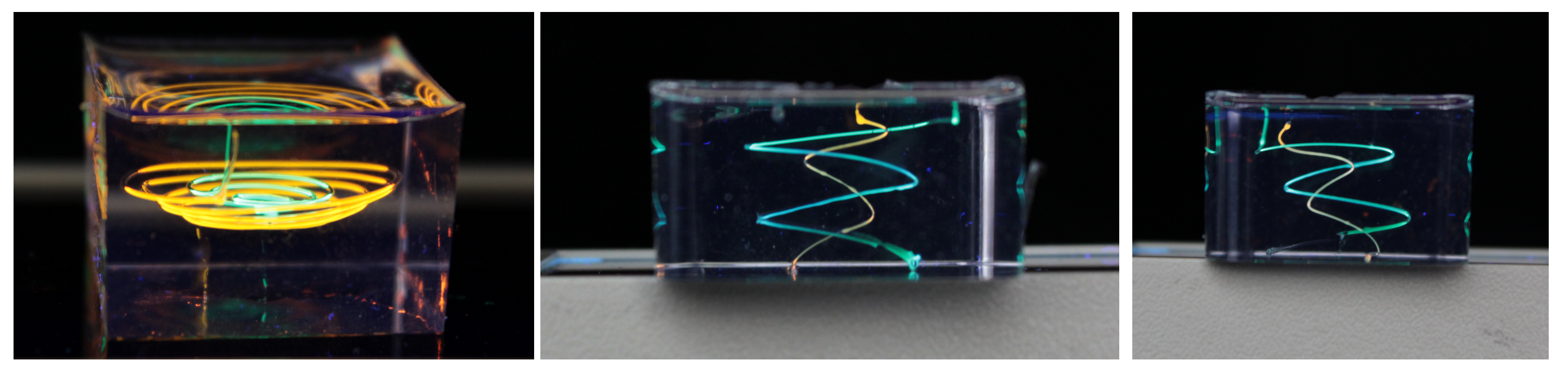

Intricate structures of channels that cannot be produced by conventional soft lithography can be produced by SLSL.

Associated Publications

Journal Papers

D. Helmer, A. Voigt, S. Wagner, N. Keller, K. Sachsenheimer, F. Kotz, T. M. Nargang, B. E. Rapp: "Suspended Liquid Subtractive Lithography: One-step generation of 3D channel geometries in viscous curable polymer matrices", Nature Scientific Reports 7, 7387, 2017 | Link

Reviews

Books and Book chapters

Conference Contributions

D. Helmer, F. Kotz, B. E. Rapp: „Suspended liquid subtractive lithography: printing three dimensional channels directly into uncured polymeric matrices”, talk, SPIE Photonics West, San Francisco, 2019.

D. Helmer: "Suspended Liquid Subtractive Lithography - Fabrication of three-dimensional microchannels by the immersion of "liquid threads"", talk, Microfluidics in the Upper Rhine Valley, IS2M Mulhouse 2018.

D. Helmer, A. Voigt, B. E. Rapp: "Suspended Liquid Subtractive Lithography (SLSL) – 3D printing of microfluidic structures directly into PDMS", 21st International Conference on Miniaturized Systems for Chemistry and Life Sciences (µTAS), Savannah, USA, 2017

Patents

B. E. Rapp, D. Helmer, A. Voigt: "Verfahren und Vorrichtung zur Erzeugung einer dreidimensionalen Struktur in einer Matrix", DE102016219192, 2016 | Link.

B. E. Rapp, D. Helmer, A. Voigt: "Method and apparatus for generating a three-dimensional structure in a matrix“, EP3305495A1, 2016 | Link.

Miscellaneous

D. Helmer, B. E. Rapp: "Healthcare Material Platforms", HEALTH 2, Paneuropean Network, 2017. The NeptunLab is features on the cover page of the issue | Link | Cover
