Biofilm formation is ubiquitous in nature, where microorganisms attach to surfaces or to each other and form highly adapted and protected communities. Biofilms also occur in technical systems like drinking water supply as well as in marine and clinical environments. In these cases biofilms are undesired because of their ability to cause biofouling, biocorrosion, contaminations and infections. Until today, there is no standard method of characterizing anti-biofilm treatment strategies in order to optimize cleaning or disinfection protocols. In this project we have developed such a system based on electrical impedance spectroscopy (EIS) and amperomertic current measurement. The system supports up to 96 measurement channels. The integrated pneumatic pumping module, allowing fully automated pumping for probing of different agents. This modular sensor system is highly adaptable and suitable for a broad range of microbiological applications.

2

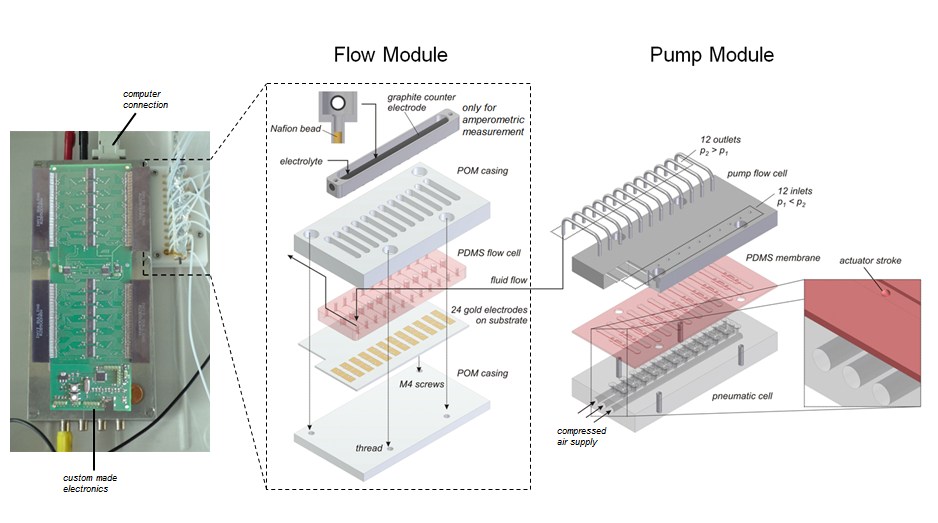

System overview

1

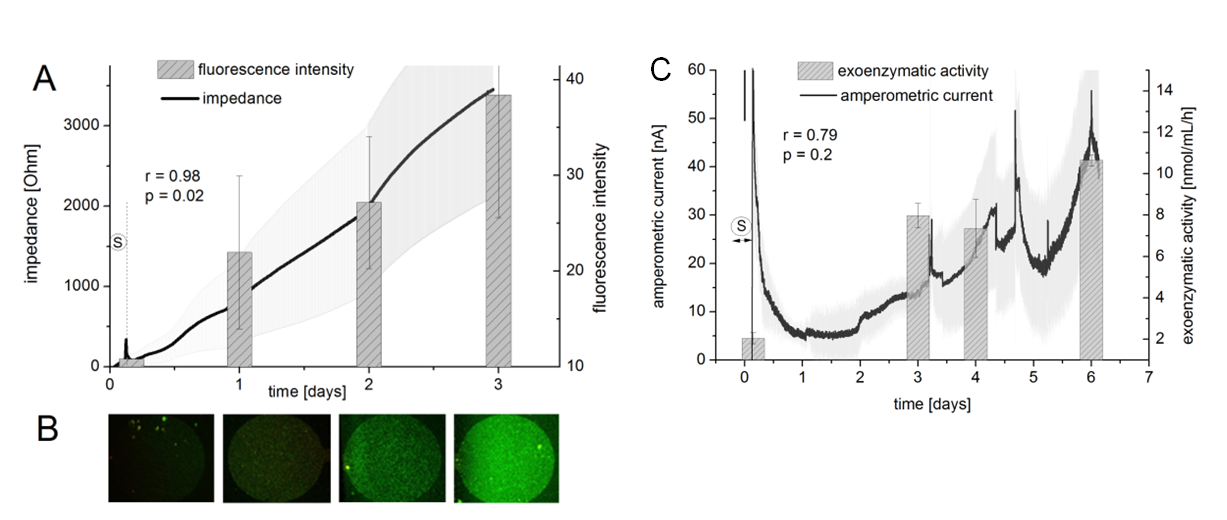

A+B: Intensity of fluorescence images at different points in time (0.2 d, 1 d ,2 d and 3 d were compared to the impedance signal (line). C: Amperometric signal was compared to exoenzymatic activity of the biofilm.
